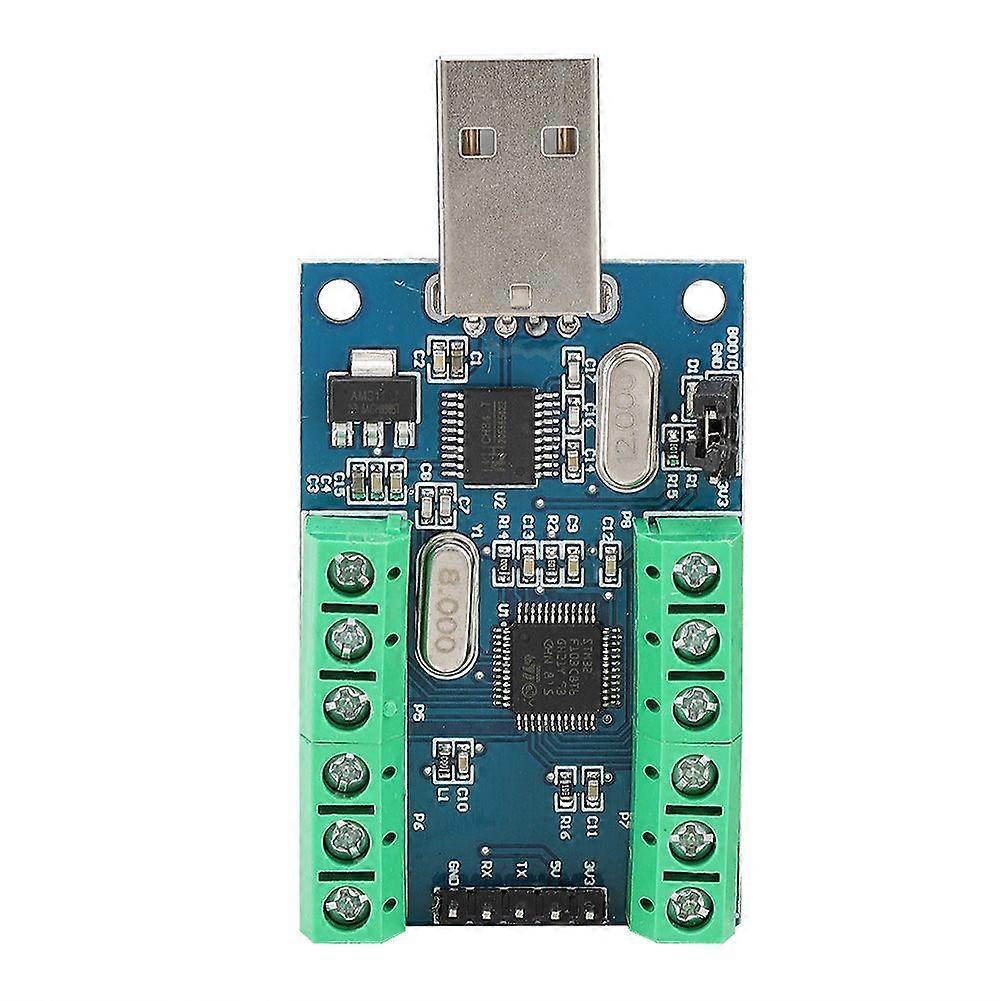

USB Interface 10 Channel 12Bit AD Sampling Data Acquisition STM32 UART Communication ADC Module

€ 14,32
KOSTENLOSER Versand

USB Interface 10 Channel 12Bit AD Sampling Data Acquisition STM32 UART Communication ADC Module

  • Marke: Unbranded
Verkauft von:

USB Interface 10 Channel 12Bit AD Sampling Data Acquisition STM32 UART Communication ADC Module

  • Marke: Unbranded

€ 14,32

Bespaar € 4,29 (23%)

UVP

€ 18,61
Auf Lager
KOSTENLOSER Versand
Verkauft von:

€ 14,32

Bespaar € 4,29 (23%)

UVP

€ 18,61
Auf Lager
KOSTENLOSER Versand

Wir akzeptieren die folgenden Zahlungsmethoden

Beschreibung

STM3210 ADC module uses the internal 10 ADC resources of ST company STM32F103 series as the sampling core, and transfers the acquired sampling data to the memory through the internal DMA of STM32, which reduces the CPU load and enhances AD. Sampling stability and accuracy, while the onboard USB to serial port chip can transfer data to the host computer.Features:1. Onboard STM32F103C8T6 main control chip.2. On-board CH340 serial port to USB chip, convenient to view AD sampling results on the PC through the USB port.3. Reserve UART serial communication interface, which can be connected to MCU.4. Fine workmanship makes sure good performance.5. 100% brand new and high quality.Specification:Analog input channel: 10-channel single-ended inputSampling voltage input range: 0-3.3VPower supply voltage: 5V/3.3VResolution: 12 Bit(4096)PCB Size: about 5.1*3.5cm/2*1.38inchPackage List:1 * ModuleNote:1. The sampling voltage input terminal INO-IN9 can be connected or only partially connected. When a certain channel has no sampling voltage input, the output of the channel is a random value. The unused port can also modify the program as a normal I/O port use.2. The use of voltage can not exceed 3.3V, otherwise there is the possibility of damage to the chip.
  • Fruugo-ID: 426090293-894868730
  • EAN: 7313854591628

Produktsicherheitsinformationen

Bitte beachten Sie die unten aufgeführten spezifischen Produktsicherheitsinformationen für dieses Produkt

Die folgenden Informationen werden vom unabhängigen Drittanbieter bereitgestellt, der dieses Produkt verkauft.

Produktsicherheitsetiketten

CE Mark
Sicherheitswarnungen: Warning: Please read the product instructions carefully before use to ensure correct use.
Seriennummer: 7313854591628
