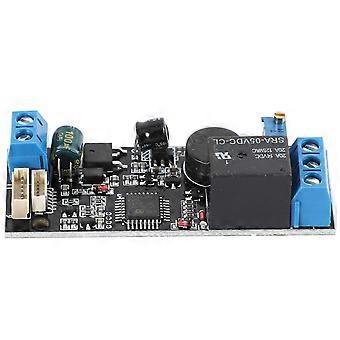

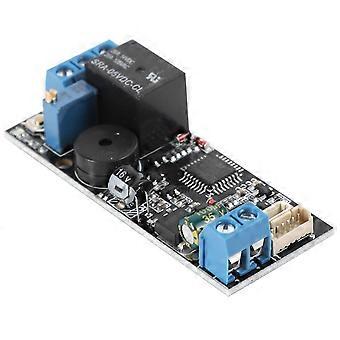

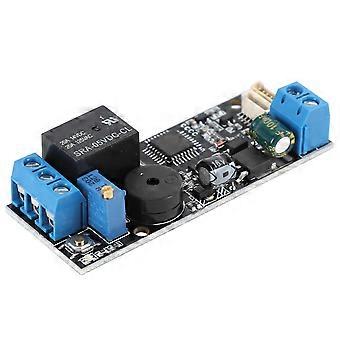

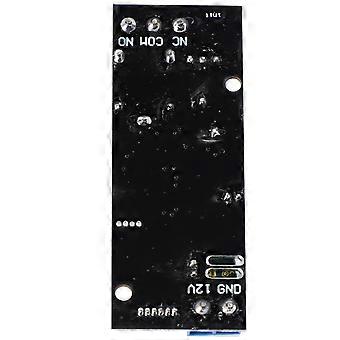

Fingerprint module is activated by finger induction;Registering fingerprints is very simple, just press the SET button to register fingerprints;The relay time can be adjusted by rotating the button Registering fingerprints is very simple, just press the SET button to register fingerprints;Can store up to 120 fingerprints K202 is designed for low power consumption, the power supply is DC10-24V, the relay time can be adjusted by rotating the button, the relay time: 0.5-13 seconds.Registering fingerprints is very simple, just press the SET button to register fingerprints, and then long press the SET button to restore the factory default settings. Control board description:1.SET button:Short press the SET button, the blue indicator light flashes quickly, the system enters the registration state, put your finger in the fingerprint collection area, fingerprint registration is successful when listening to music. When the system is in the registration state, you can register fingerprints continuously; if you do not need to add fingerprints, please wait a few seconds. 2. Return to factory default:Press the SET button until you hear a long "Di" beep and music, indicating that the initialization operation was successful;3. Set the relay time:Turn K2 to set the closing time of the relay to 0.5 to 13 seconds. The relay is a contact output, a switching signal, and no voltage output;4. Use:Press the finger, the relay closes after the fingerprint passes, and the closing time is determined by K2. Technical Parameters: P1: Power supply: DC10-24V Output: Relay (Max current: 10A) Standby current: 15uA Fingerprint capacity: 120 Size: 64.4 * 25.4mm P2: MX 1.0mm pitch 6-pin fingerprint module (can be connected to R502, R502-A, R503) P3: MX 1.25mm pitch 6-pin fingerprint module (can be connected to R300, R301T, R303, R303T, R305, R306, R307, R501) Colour:Blue + Black Material:PCB Package Contents: 1 * Fingerprint control board Note: 1. In the standby state, all the indicators are off, and in the working state, the indicators are on; 2. Any fingerprint can be used in the factory state, but this function will be invalid after the fingerprint is registered. K202 can be used with R300, R301T, R303, R303T, R305, R306, R307, R501, R502, R502-A, R502-AW, R503 fingerprint modules Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
