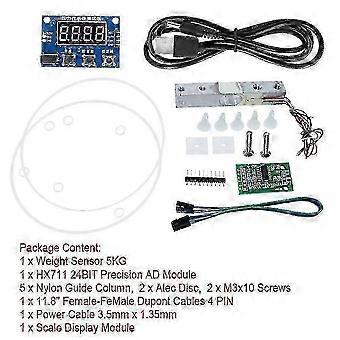

Two selectable differential input channels.<br> <br> On-chip active low noise with selectable gain of 32,64 and 128.<br> <br> On-chip power supply regulator for load-cell and ADC analog power supply.<br> <br> On-chip oscillator requiring no external component with external crystal.<br> <br> On-chip power-on-reset.<br> <br> Simple digital control and serial interface: pin-driven controlsno programming needed.<br> <br> Selectable 10SPS or 80SPS output data rate.<br> <br> Simultaneous 50 and 60Hz supply rejection.<br> <br> Current consumption including on-chip analog power supply regulator: normal operation less than 1.5mApower down less than 1uA.<br> <br> Operation supply voltage range: 2.6 ~ 5.5V<br> <br> Operating Temperature Range:-20 degree ~ +85 degree<br> <br> Connection:<br> <br> Red to E+<br> <br> Black to E-<br> <br> Green to A+<br> <br> White to A-<br> <br> Note:<br> <br> Be sure not to directly press on the white cover to prevent damage to the sensor.<br> <br> Colour: green + silver<br> <br> Material: plastic<br> <br> Package Contents:<br> <br> 1 * weight sensor 5KG<br> <br> 1 * HX711 precision AD module<br> <br> 5 * nylon guide posts<br> <br> 2 * acrylic discs<br> <br> 2 * M3x10 screws<br> <br> 1 * 4P cable (color random, don't accept the specified color)<br> <br> 1 * 3.5x1.35mm power cord<br> <br> 1 * display module<br> <br> Only the above package content, other products are not included.<br> <br> Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.<br> Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-DIMEANI official store
