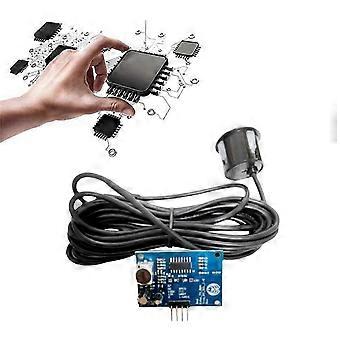

suitable for JSN-SR04T Waterproof Ultrasonic Module Water Proof Integrated Distance Measuring Transducer Sensor--FO SHAN RAN WANG The basic working principle 1. Using IO port TRIG trigger location, to the high level signal of at least 10us; 2. Module automatically sends 8 40KHz Fang Bo, automatic detecting whether a signal return; 3. A signal return, a high level is output through the IO port , the time duration of the high level is ultrasonic from launch to return. The test distance = (high level time x speed of sound (340M/S)) /2; 4. This module uses the simple method, a control port with a 10US above high level, can wait for high level output at the receiving port. An output can drive the , when this port is low can read the value, this time for the location of the time, can be calculated distance. So constantly cycle test, that can achieve the measurement of the value of your mobile. Electrical properties 1.Electrical parameters: JSN-SR04T 2.Operating voltage: DC 5V 3.Quiescent current: 5mA 4.Total current work: 30mA 5.Acoustic emission frequency: 40khz 6.Farthest distance: 4.5m 7.Blind: 25cm 8.Wiring: + 5V (positive power supply) Trig (control side) RX (the receiver) TX GND (negative) 9.Resolution: about 0.5cm 10.Angle: less than 50 degrees 11.Working temperature: -10 ~ 70 Celsuis 12.Storage temperature: -20 ~ 80 Celsuis Product Features 1.Small size, easy to use 2.Low voltage, low power consumption 3.High accuracy 4.Strong anti-jamming 5.Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions Application 1.Horizontal distance; 2.Obstacle avoidance, automatic control; 3.The object approaches, there is a perceived 4.Traffic control; 5.Security, industrial control; 6.Artificial intelligence, and research Color: Random color, No specification accepted Material: PCB Specifications:Old version The appearance and color of the product from batch to batch, but will not affect the use Package Contents: 1 x Ultrasonic Module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. Please pay attention to the title and description when buying, and pay attention to the title and description when buying.
