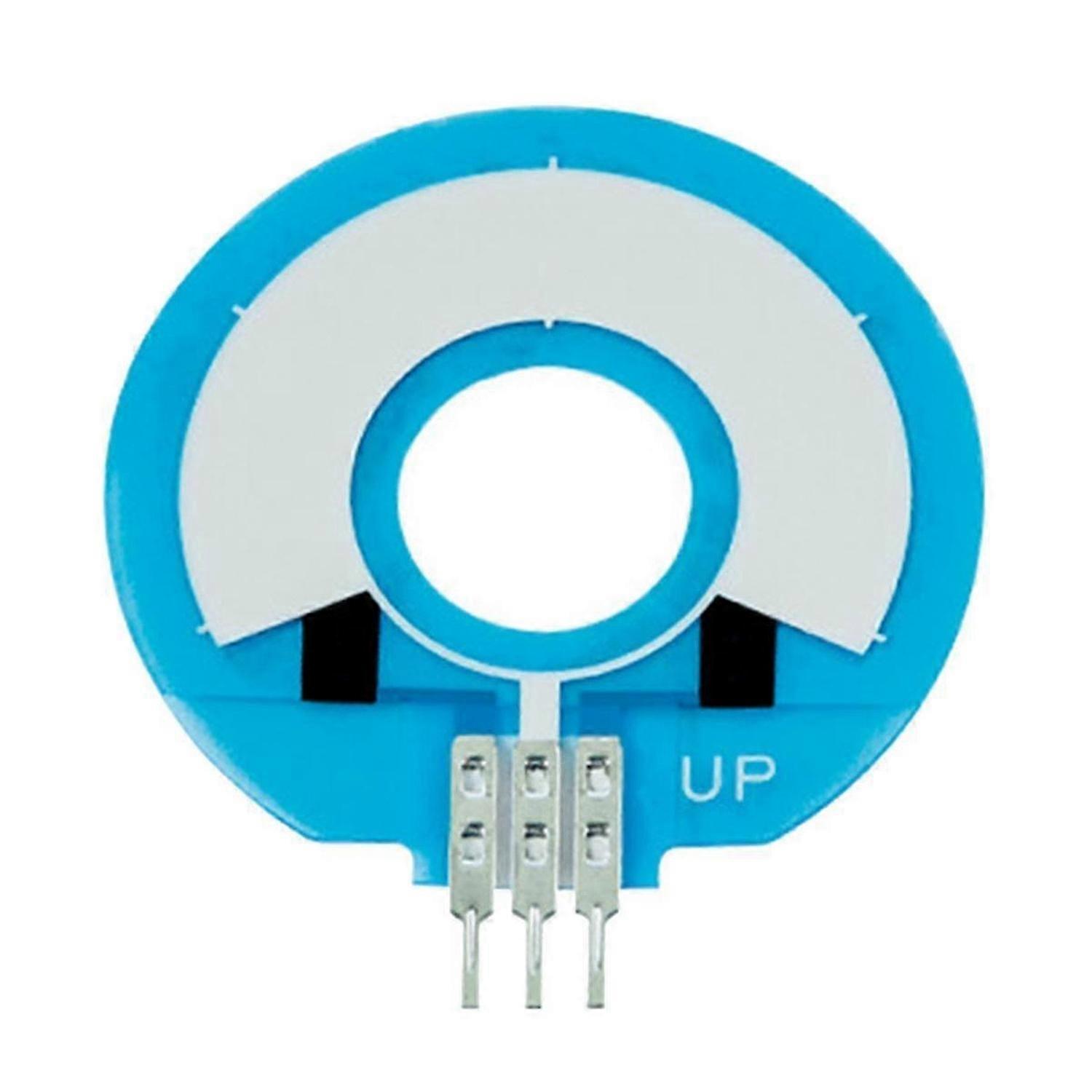

1.POT-C36H12 is a resistive ring-shaped film position sensor. The sensor interface V0 is connected to ground, V+ is connected to the positive pole of the power supply, and V1 is the sensor output voltage. 2. When there is no external pressure acting on the sensing area, V1 is in an open circuit state, and the output voltage V1 is 0; when there is pressure (20g-50g), the sensor is triggered, and V1 outputs a voltage signal. When the pressure is applied from the left end of the sensor to When the right end moves, V1 becomes larger, and the change range changes linearly from 0.2V+ to 0.8V+. The voltage of V1 is determined by the position of the pressure; 3. After the pressure is removed, the sensor returns to the off state and the V1 voltage is 0. 4. The position sensor is composed of polyester film with excellent comprehensive mechanical properties and environmental protection, highly conductive materials, pressure-sensitive materials, and adhesive materials. There is double-sided tape on the back for easy installation. It adopts metal terminal interface, which is and can be soldered directly. 5. Fast response, long durability, long service life, simple circuit principle and easy application<br><br>Description: Typical Application: Location Sensing Potentiometer Gear Switch Other Location Sensing Scenarios parameter: 1.Thickness: about 0.45mm 2. Style: Flake 3. Trigger force: 20g-50g 4. Recommended pressure: 20g~200g 5. Recommended indenter: curved /D3 rubber ball 6.Contact resistance: Less than 10 7. Pressure action mode: /spring/weight block 8. Resistance when not triggered: infinite (V1-V0, V1-V+) 9.Activation time: Less than 0.01S 10.Using temperature: -20~+65 11. Durability: More than times of normalflexible pressing) 12. Initial resistance G type: 160K 13. Response time: Less than 1ms 14. Is it waterproof: No 15. Is it dustproof: yes 16.Electromagnetic interference : None 17. Electrostatic discharge : None 18. Linear range: V0.2+~V0.8+ 19. Output type: resistance value Material: ABS + colour: As shown<br><br>Package Contents: 1 x Resistive Film Position Sensor<br><br>Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
